EXPLORER 325 BGAN Satellite Terminal

Overview

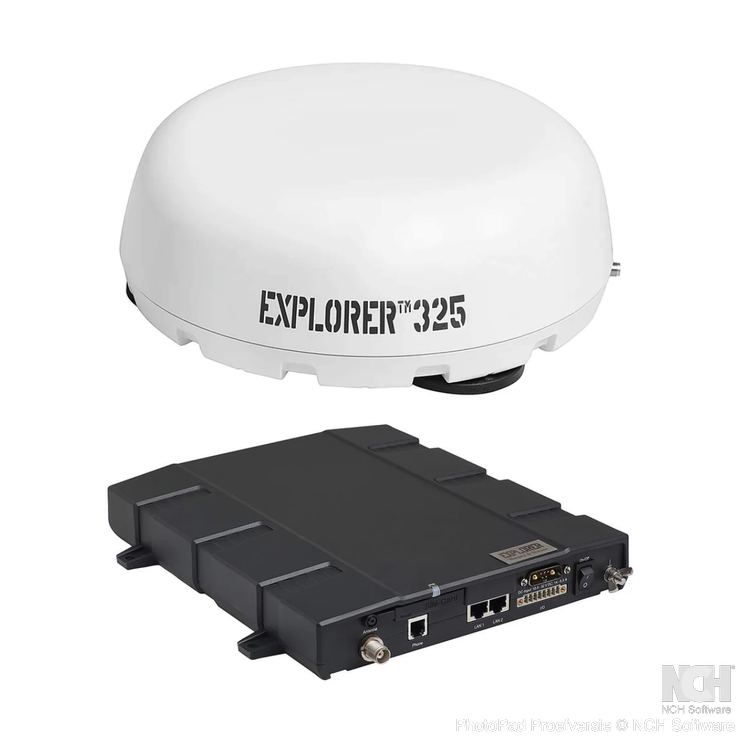

The EXPLORER 325 is a compact L-band mobile satellite terminal that provides broadband Internet and voice services anywhere in the world via the Inmarsat BGAN network. Designed for vehicles in motion or stationary use, it enables reliable communication for logistics, humanitarian, emergency, and field operations.

Key Features

  • Global Connectivity: Internet access and telephony from virtually any location.

  • Mobile Use: Compact, lightweight design with magnetic-mount antenna for easy installation on vehicles.

  • Simple Setup: Connect a computer or IP handset, align with satellite using built-in compass and sound indicators, and connect instantly.

  • Concurrent Services: Supports simultaneous voice and data transmission.

  • Web Interface: Built-in management interface and PPPoE support for flexible networking.

Functionality

  • Standard IP Data: Up to 464 kbps (shared bandwidth)

  • Streaming IP: 32, 64, or 128 kbps guaranteed quality (e.g., video/audio streaming)

  • Voice Services:

    • Standard voice: 4 kbps (AMBE+2)

    • Premium voice: 64 kbps (3.1 kHz audio)

  • SMS Messaging: Send/receive up to 160 characters

  • File Transfer & Email: Reliable large file and email transmission

  • Telephony: RJ11 port supports analog phone or fax connection

Specifications



ParameterDetailsAntenna Dimensions (H x Ø)128 x 349 mmTransceiver Dimensions (H x W x D)41 x 231 x 278 mmWeightTransceiver: 2.2 kg; Antenna: 3.6 kgData RatesStandard IP: up to 464 kbps; Streaming IP: 32–128 kbpsFrequency RangeRx: 1525.0–1559.0 MHz; Tx: 1626.5–1660.5 MHzOperating Temperature-40°C to +80°CPower Supply100–240 VAC, 47–63 Hz, 64 WIngress ProtectionAntenna: IP56; Transceiver: IP30Interfaces2 × RJ45 (LAN), 1 × RJ11 (Phone/Fax), 1 × I/O (5-pin)
