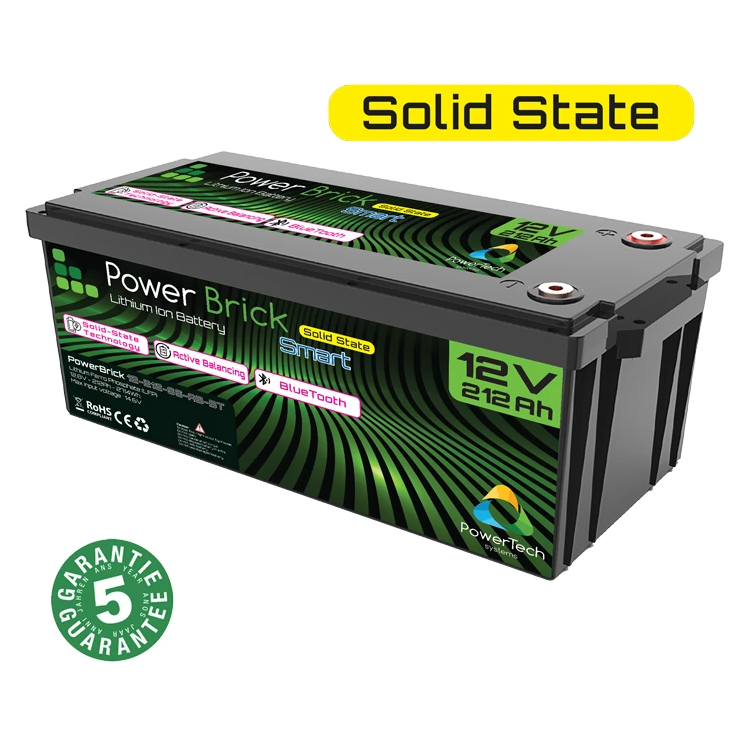

LFP Solid-State battery 12V-212Ah (2.71kWh) – PowerBrick® «SMART» with active balancing and BlueTooth

PowerBrick - Lithium Battery Solid-State 12V-212Ah

This 12V solid cell battery is fitted with a ultra efficient active balancing system and BlueTooth system for real time monitoring on IOS or Android smartphone :

• State of charge (SoC) and State of health (SoH)
• Voltage and temperature for each cell
• Instant voltage and current
• Alarms (over-voltage, over-current, over-temperature of cells, short-circuit of power terminals, etc.)
• Cell Technology : Lithium Iron Phosphate (LiFePO4 – LFP)
• Cell Type : Solid-State
• Very fast and efficient Active Balancing system (1000mA per cell)
• Nominal voltage : 12.8V
• Stored Energy : 2710 Wh
• Volumetric Energy Density : 121.2 Wh / L
• Specific Energy : 123.9 Wh / Kg
• New high performance sealed cylindrical cell
• 4500 cycles at 100% DoD @ 1C (see chart tab)
• >8000 cycles at 80% DoD @ 1C (see chart tab)
• 98% energy efficiency
• Weight : 21.9 Kg
• Dimensions : 505mm x 185mm x 242mm
• Instant peak discharge current : 800A ±20A (max 300mS)
• Continuous discharge current : 200A (2.56kW)
• Peak discharge current (< 30s) : 250A (3.2kW)
• Maximum continuous charge current : 180A
• High safety with advanced Built-in Battery Management System
• Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
• 100% Maintenance free
• NO SERIAL ASSEMBLY ALLOWED
• Parallel assembly up to 16 items (12V-3392Ah / 43.4kWh)
• Robust design in an insulated and waterproof casing (Protection index : IP65)
• Communication : BlueTooth
• Operating temperature in charge : 0°C à +60°C
• Operating temperature in discharge: -20°C à +60°C
• Sealed case (IP65)
• CE, RoHS and UN38.3 certification
• 2 years commercial warranty as standard, extendable to 5 years
