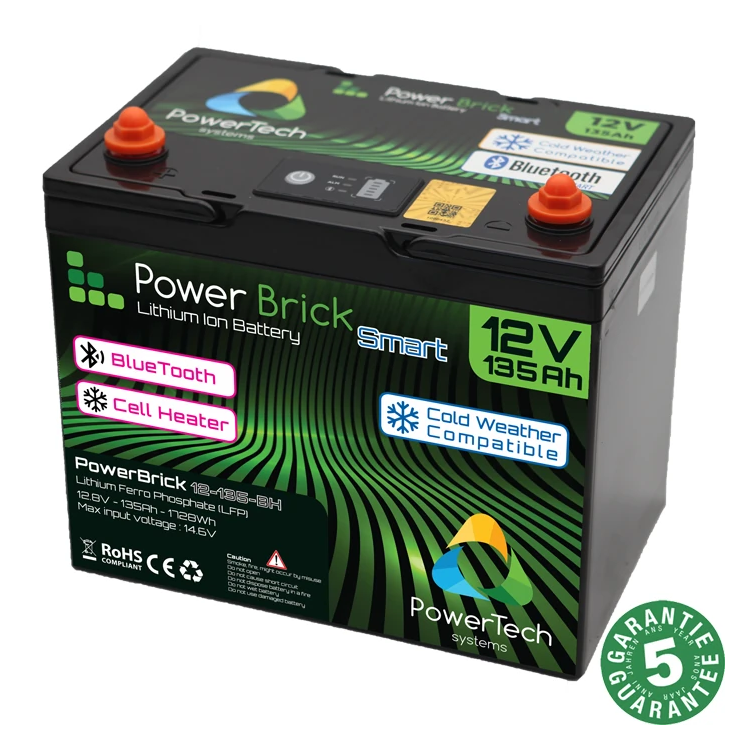

Lithium-Ion Battery 12V – 135Ah (1.73kWh) – PowerBrick® «Smart» with Cell Heater and BlueTooth monitoring

PowerBrick - LFP/LiFePO4 Battery 12V-135Ah «Smart BT + Heater»

This PowerBrick «Smart BT + Heater» features a cell heating system that enables batteries to be used in cold weather (down to -20°C). An intelligent proprietary system draws energy from the charger to warm the cells during charging. The heating and charging process is totally transparent to the user and requires no intervention.

This 12V LiFePO4 Battery is also fitted with a BlueTooth system for monitoring real time operation on an IOS or Android smartphone :

State of charge (SoC) and State of health (SoH)
Voltage and temperature for each cell
Instant voltage and current
Status (iddle, discharging, charging)
Alarms (over-voltage, over-current, over-temperature of cells, short-circuit of power terminals, etc.)
Cell Technology : Lithium Iron Phosphate- Solid State
Nominal voltage : 12.8V
Stored Energy : 1.73 KWh
Volumetric Energy Density : 186.8 Wh / L
Specific Energy : 132.1 Wh / Kg
New high performance sealed cylindrical cell
3000 cycles at 100% DoD @ 1C (see chart tab)
4500 cycles at 80% DoD @ 1C (see chart tab)
98% energy efficiency
Weight : 13.1Kg
Dimensions : 260mm x 168mm x 212mm
Instant peak discharge current : 800A ±30A (max 300mS)
Continuous discharge current : 135A (1.73kW)
Peak discharge current (< 30s) : 200A (2.56kW)
Maximum continuous charge current : 100A
High safety with advanced Built-in Battery Management System
Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
100% Maintenance free
Serial assembly up to 48V (Only for PowerBrick 12V and 24V)
Parallel assembly up to 16 items (12V-2160Ah / 27.6kWh)
Robust design in an insulated and waterproof casing (Protection index : IP65)
Operating temperature in charge : 0°C à +60°C
Operating temperature in discharge: -20°C à +60°C
Sealed case (IP65)
CE, RoHS and UN38.3 certification
2 years commercial warranty as standard, extendable to 5 years
