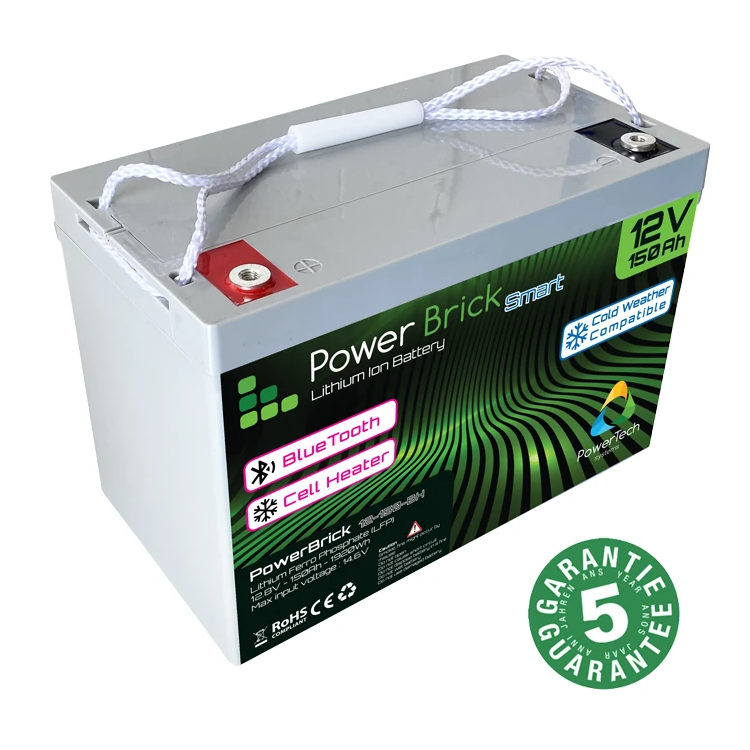

Lithium battery 12V-150Ah (1.92kWh) – PowerBrick® «Smart» with Cell Heater and BlueTooth monitoring
PowerBrick - LFP/LiFePO4 Battery 12V-150Ah «Smart BT + Heater»
The PowerBrick Bluetooth lithium battery «Smart BT + Heater» features a cell heating system that enables batteries to be used in cold weather (down to -20°C). An intelligent proprietary system draws energy from the charger to warm the cells during charging. The heating and charging process is totally transparent to the user and requires no intervention.
This 12V LiFePO4 Battery is also fitted with a BlueTooth system for monitoring its real time operation on IOS or Android smartphone.
The following information is available:
- State of charge (SoC) and State of health (SoH)
- Voltage and temperature for each cell
- Instant voltage and current
- Status (iddle, discharging, charging)
- Alarms (over-voltage, over-current, over-temperature of cells, short-circuit of power terminals, etc.)
- Cell Technology : Lithium Iron Phosphate- Solid State
- Nominal voltage : 12.8V
- Stored Energy : 1.92 KWh
- Volumetric Energy Density : 176.6 Wh / L
- Specific Energy : 121.5 Wh / Kg
- New high performance sealed cylindrical cell
- 3000 cycles at 100% DoD @ 1C (see chart tab)
- 4500 cycles at 80% DoD @ 1C (see chart tab)
- 98% energy efficiency
- Weight : 15.8Kg
- Dimensions : 307mm x 167mm x 212mm
- Instant peak discharge current : 650A ±50A (max 150mS)
- Continuous discharge current : 150A (1.92kW)
- Peak discharge current (< 30s) : 250A (3.2kW)
- Maximum continuous charge current : 150A
- High safety with advanced Built-in Battery Management System
- Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
- 100% Maintenance free
- Serial assembly up to 48V (Only for PowerBrick 12V and 24V)
- Parallel assembly up to 16 items (12V-2400Ah / 30.7kWh)
- Robust design in an insulated and waterproof casing (Protection index : IP65)
- Operating temperature in charge : 0°C à +60°C
- Operating temperature in discharge: -20°C à +60°C
- Sealed case (IP65)
- CE, RoHS and UN38.3 certification
- 2 years commercial warranty as standard, extendable to 5 years
