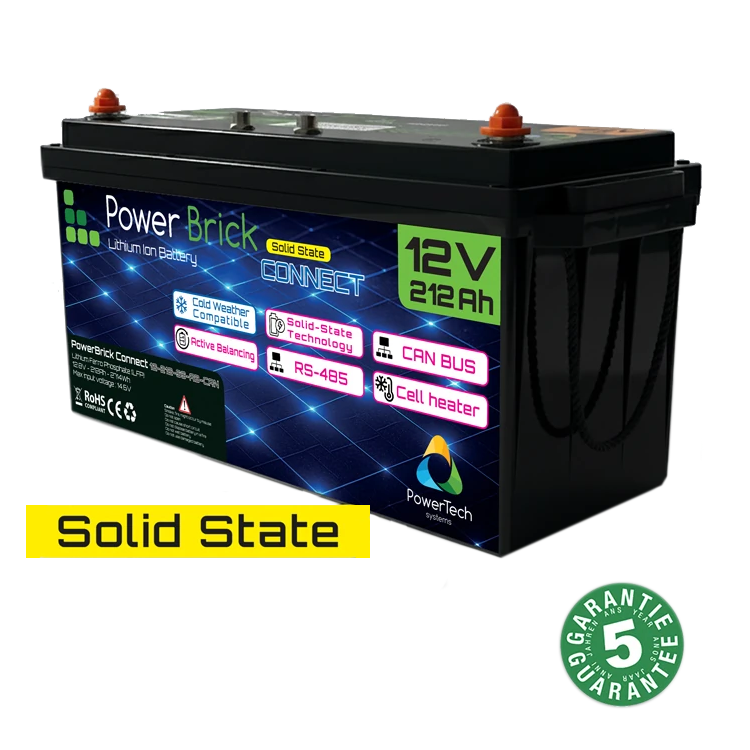

PowerBrick - Lithium Battery Solid-State 12V-212Ah CAN/RS485

This 12V solid-state battery incorporates a cell heating system that allows it to be used in cold climates (down to -20°C). A proprietary system uses the chargerd’s energy to warm the cells before charging the battery in sub-zero temperatures. The heating and charging process is completely transparent to the user.

This battery is also equipped with a high-performance active cell balancing system that allows for very fast cell balancing without generating heat inside the case.

Finally, the PowerBrick® “CONNECT” communicates with the outside world via a CAN or RS485 bus, allowing you to control a charger, communicate with VICTRON VE-CAN devices (control of a MultiPlus inverter MultiPlus self-consumption inverter, for example), or send battery operating data to an external control device (PLC, PC, CAN-compatible display, etc.).

This product can only be assembled in parallel (no series assembly



  • Cell Technology : Lithium Iron Phosphate (LiFePO4 – LFP)
  • Cell Type : Solid-State
  • Very fast and efficient Active Balancing system (1000mA per cell)
  • Nominal voltage : 12.8V
  • Stored Energy : 2714 Wh
  • Volumetric Energy Density : 121.2 Wh / L
  • Specific Energy : 123.9 Wh / Kg
  • New high performance sealed cylindrical cell
  • 4500 cycles at 100% DoD @ 1C (see chart tab)
  • >8000 cycles at 80% DoD @ 1C (see chart tab)
  • 98% energy efficiency
  • Weight : 21.9 Kg
  • Dimensions : 505mm x 185mm x 242mm
  • Instant peak discharge current : 800A ±20A (max 300mS)
  • Continuous discharge current : 200A (2.56kW)
  • Peak discharge current (< 30s) : 250A (3.20kW)
  • Maximum continuous charge current : 180A
  • High safety with advanced Built-in Battery Management System
  • Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
  • 100% Maintenance free
  • NO SERIAL ASSEMBLY ALLOWED
  • Parallel assembly up to 16 items (12V-3392Ah / 43.4kWh)
  • Robust design in an insulated and waterproof casing (Protection index : IP65)
  • Communication : CAN Bus + RS-485
  • Operating temperature in charge : 0°C à +60°C
  • Operating temperature in discharge: -20°C à +60°C
  • Sealed case (IP65)
  • CE, RoHS and UN38.3 certification
  • 2 years commercial warranty as standard, extendable to 5 years
