Lithium Battery 24V-50Ah – 1.28kWh – PowerBrick

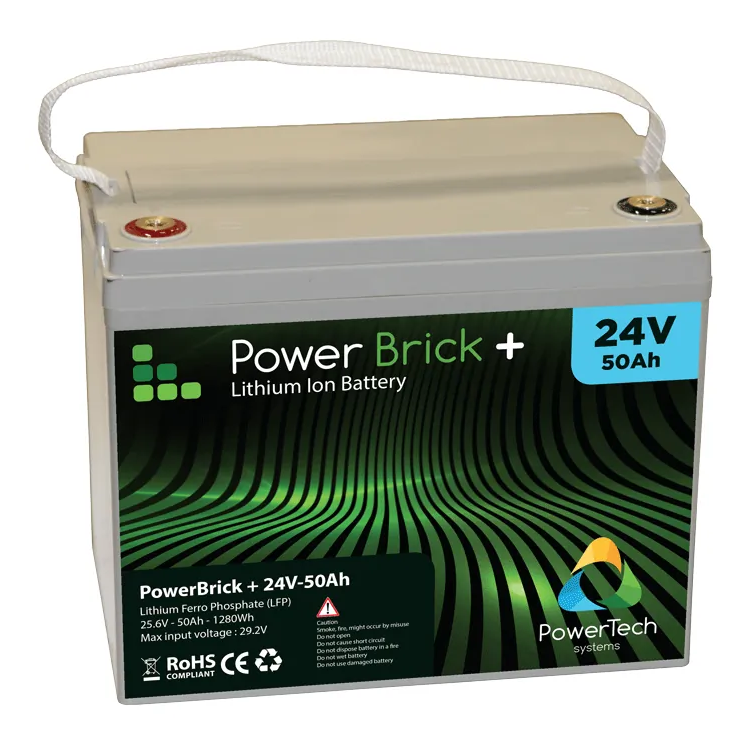

PowerBrick - LFP/LiFePO4 Battery 24V-50Ah

• Cell Technology : Lithium Iron Phosphate- Solid State
• Nominal voltage : 25.6V
• Stored Energy : 1.28 kWh
• Volumetric Energy Density : 138.23 Wh / L
• Specific Energy : 123.1 Wh / Kg
• New high performance sealed cylindrical cell
• 3000 cycles at 100% DoD @ 1C (see chart tab)
• 4500 cycles at 80% DoD @ 1C (see chart tab)
• 98% energy efficiency
• Weight : 10.4Kg
• Dimensions : 260mm x 168mm x 212mm
• Instant peak discharge current : 350A ±50A (max 300mS)
• Continuous discharge current : 75A (1.92kW)
• Peak discharge current (< 30s) : 115A (3.0kW)
• Maximum continuous charge current : 50A
• High safety with advanced Built-in Battery Management System
• Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
• 100% Maintenance free
• Serial assembly up to 48V (Only for PowerBrick 12V and 24V)
• Parallel assembly up to 16 items (24V-800Ah / 20.5kWh)
• Robust design in an insulated and waterproof casing (Protection index : IP65)
• Operating temperature in charge : 0°C à +60°C
• Operating temperature in discharge: -20°C à +60°C
• Sealed case (IP65)
• CE, RoHS and UN38.3 certification
• 2 years commercial warranty as standard, extendable to 5 years
