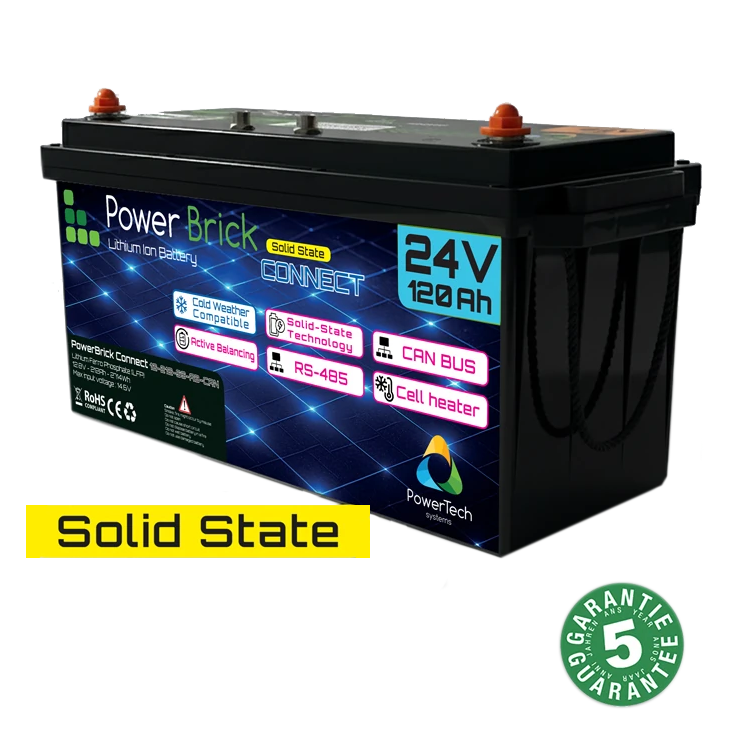

Solid Battery 24V-120Ah with CAN Bus/RS485 + heater

PowerBrick - Lithium Battery Solid-State 24V-120Ah CAN/RS485

This 24V solid-state battery features a cell heating system that enables batteries to be used in cold weather (down to -20°C). An intelligent proprietary system draws energy from the charger to warm the cells during charging. The heating and charging process is totally transparent to the user.

• Cell Technology : Lithium Iron Phosphate (LiFePO4 – LFP)
• Cell Type : Solid-State
• Very fast and efficient Active Balancing system (1000mA per cell)
• Nominal voltage : 25.6V
• Stored Energy : 3072 Wh
• Volumetric Energy Density : 137.0 Wh / L
• Specific Energy : 125.3 Wh / Kg
• New high performance sealed cylindrical cell
• 4500 cycles at 100% DoD @ 1C (see chart tab)
• >8000 cycles at 80% DoD @ 1C (see chart tab)
• 98% energy efficiency
• Weight : 24.4 Kg
• Dimensions : 505mm x 185mm x 242mm
• Instant peak discharge current : 800A ±20A (max 300mS)
• Continuous discharge current : 150A (3.84kW)
• Peak discharge current (< 30s) : 200A (5.12kW)
• Maximum continuous charge current : 130A
• High safety with advanced Built-in Battery Management System
• Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
• 100% Maintenance free
• Serial assembly up to 48V (Only for PowerBrick 12V and 24V)
• Parallel assembly up to 16 items (24V-1920Ah / 49.2kWh)
• Robust design in an insulated and waterproof casing (Protection index : IP65)
• Communication : CAN Bus + RS-485
• Operating temperature in charge : 0°C à +60°C
• Operating temperature in discharge: -20°C à +60°C
• Sealed case (IP65)
• CE, RoHS and UN38.3 certification
• 2 years commercial warranty as standard, extendable to 5 years
