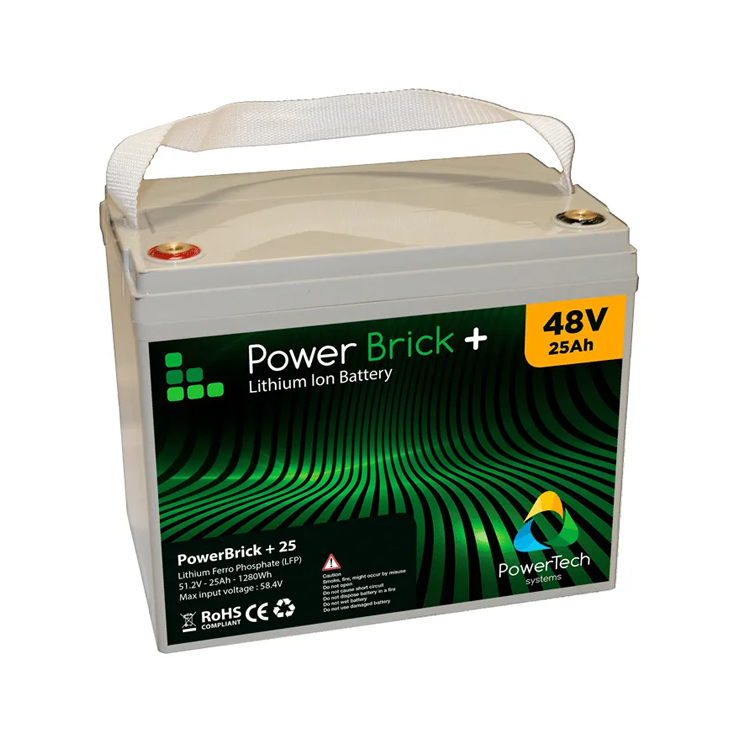

Lithium Battery 48V-25Ah – 1.28kWh – PowerBrick

PowerBrick - LFP/LiFePO4 Battery 48V-25Ah

• Cell Technology : Lithium Iron Phosphate- Solid State
• Nominal voltage : 51.2V
• Stored Energy : 1.28 kWh
• Volumetric Energy Density : 138.2 Wh / L
• Specific Energy : 107.6 Wh / Kg
• New high performance sealed cylindrical cell
• 3000 cycles at 100% DoD @ 1C (see chart tab)
• 4500 cycles at 80% DoD @ 1C (see chart tab)
• 98% energy efficiency
• Weight : 11.9Kg
• Dimensions : 260mm x 168mm x 212mm
• Instant peak discharge current : 270A ±30A (max 100mS)
• Continuous discharge current : 50A (2.56kW)
• Peak discharge current (< 30s) : 100A (5.12kW)
• Maximum continuous charge current : 25A
• High safety with advanced Built-in Battery Management System
• Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
• 100% Maintenance free
• Serial assembly up to 48V (Only for PowerBrick 12V and 24V)
• Parallel assembly up to 16 items (48V-400Ah / 20.5kWh)
• Robust design in an insulated and waterproof casing (Protection index : IP65)
• Operating temperature in charge : 0°C à +60°C
• Operating temperature in discharge: -20°C à +60°C
• Sealed case (IP65)
• CE, RoHS and UN38.3 certification
• 2 years commercial warranty as standard, extendable to 5 years
