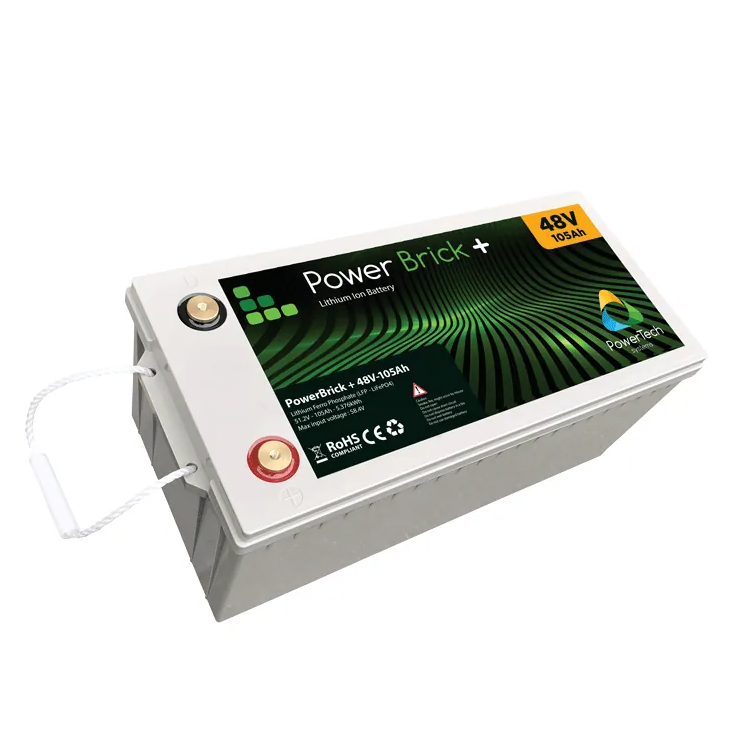

Lithium Battery 48V-105Ah – 5.38kWh – PowerBrick
- Cell Technology : Lithium Iron Phosphate- Solid State
- Nominal voltage : 51.2V
- Stored Energy : 5.38 kWh
- Volumetric Energy Density : 207.5 Wh / L
- Specific Energy : 147.4 Wh / Kg
- New high performance sealed cylindrical cell
- 3000 cycles at 100% DoD @ 1C (see chart tab)
- 4500 cycles at 80% DoD @ 1C (see chart tab)
- 98% energy efficiency
- Weight : 36.5Kg
- Dimensions : 500mm x 239mm x 217mm
- Instant peak discharge current : 500A ±50A (max 280mS)
- Continuous discharge current : 120A (6.15kW)
- Peak discharge current (< 30s) : 200A (10.24kW)
- Maximum continuous charge current : 100A
- High safety with advanced Built-in Battery Management System
- Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
- 100% Maintenance free
- Serial assembly up to 48V (Only for PowerBrick 12V and 24V)
- Parallel assembly up to 16 items (48V-1680Ah / 86.0kWh)
- Robust design in an insulated and waterproof casing (Protection index : IP65)
- Operating temperature in charge : 0°C à +60°C
- Operating temperature in discharge: -20°C à +60°C
- Sealed case (IP65)
- CE, RoHS and UN38.3 certification
- 2 years commercial warranty as standard, extendable to 5 years
