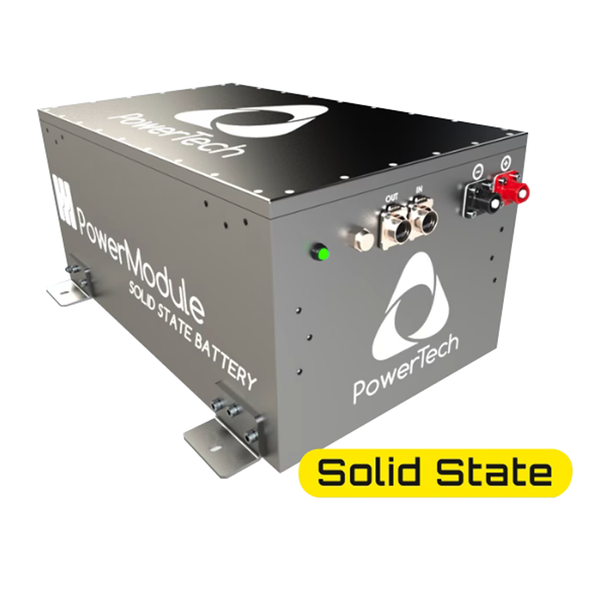

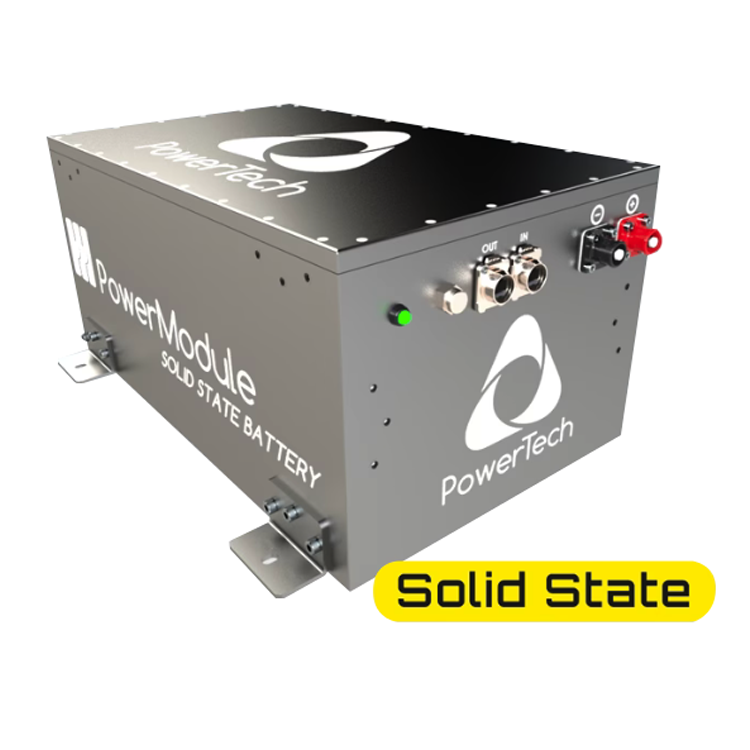

PowerModule® Solid State

PowerModule is designed around a high performance 5.43 kWh Lithium Iron Phosphate (LiFePO4) battery composed of Solid State technology cells.

Technical Specifications

Min / Nominal / Max voltage 48.0 V / 51.2 V / 58.4 V

Nominal capacity (at 1C, 25°C) 106Ah (5.43 KWh)

This new technology allow fast charge, 50% increased lifetime compared to legacy technology, improved safety with non-flammable electrolyte, and very low cell heat-up during use.

Each module is equipped with BMS Matrix® technology with active balancing, to ensures total battery safety in real time and considerably extends battery life.

The BMS manages cell reheating for low-temperature operation down to -25°C.

The PowerModule blocks are connected to each other by a private and secure CAN communication bus. This distributed architecture ensures high fault tolerance and easy commissioning.

The high modularity and scalabity allow to easily build storage systems up to 819

VDC nominal and 700kWh
