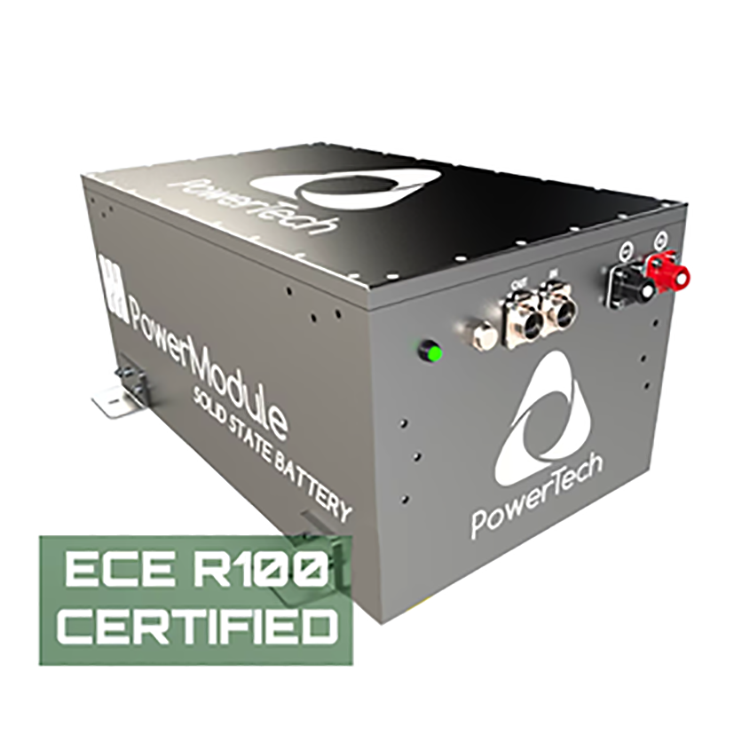

Power Module ECE R100 Rev 2 certified
Modular Design - Bureau Veritas Certified
Each PowerModule block is designed around a high performance 5.4 kWh Li-thium Iron Phosphate (LiFePO4) battery composed of sealed cells.
Technical Specifications
Min / Nominal / Max voltage 48.0 V / 51.2 V / 58.4 V
Nominal capacity (at 1C, 25°C) 105Ah (5.376 KWh)
Weight (+/- 3 %) 43.5 Kg
Each module is equipped with BMS Matrix® technology, which ensures the complete safety of the battery in real time and drastically extends its lifespan.
The BMS also manages a cell heating system for operation in temperatures down to -25°C.
Dimensions (l x w x h) 400 x 290 x 230 mm
Operation temperature from -20°C, up to +60°C
Protection Index IP54 (IP65 upon request)
Power connector Amphenol Powerlok Ind P67
Specific energy 123.5 Wh/Kg
Energy density 201.5 Wh/l
Continuous discharge current (at 20 °C) 125 A (6.40kW)
Peak discharge current (10 minutes / 30 sec) 200 A (10.24kW) / 250 A (12.80kW)
Recommanded charge voltage 57.0 V (max 58.4V)
Floating charge voltage 53.4 V
The PowerModule blocks are connected to each other by a private and secure CAN communication bus. This distributed architecture ensures high fault tolerance and easy commissioning.
Key advantages
• “Plug-and-Play” and flexible system : Easy and fast commissioning
• Scalable system : Serial and/or Parallel assembly up to 128 modules to fullfill the most complex appplications
• Real-time monitoring in the cloud is available
• Stainless steel housing IP 54 (IP65 upon request)
• Amphénol waterproof connection (IP67)
• External communication by CAN bus available
• High lifespan and number of cycles
PowerModule unit - Technical Specifications
Min / Nominal / Max voltage 48.0 V / 51.2 V / 58.4 V
Nominal capacity (at 1C, 25°C) 105Ah (5.376 KWh)
Weight (+/- 3 %) 43.5 Kg
Dimensions (l x w x h) 400 x 290 x 230 mm
Operation temperature from -20°C, up to +60°C
Protection Index IP54 (IP65 upon request)
Power connector Amphenol Powerlok Ind P67
Specific energy 123.5 Wh/Kg
Energy density 201.5 Wh/l
Continuous discharge current (at 20 °C) 125 A (6.40kW)
Peak discharge current 200 A (10.24kW) / 250 A (12.80kW)
Recommanded charge voltage 57.0 V (max 58.4V)
Floating charge voltage 53.4 V
Standard charge Current 50 A (2.56kW)
Fast charge Current 100 A (5.12kW)
